Carrying roller configurator

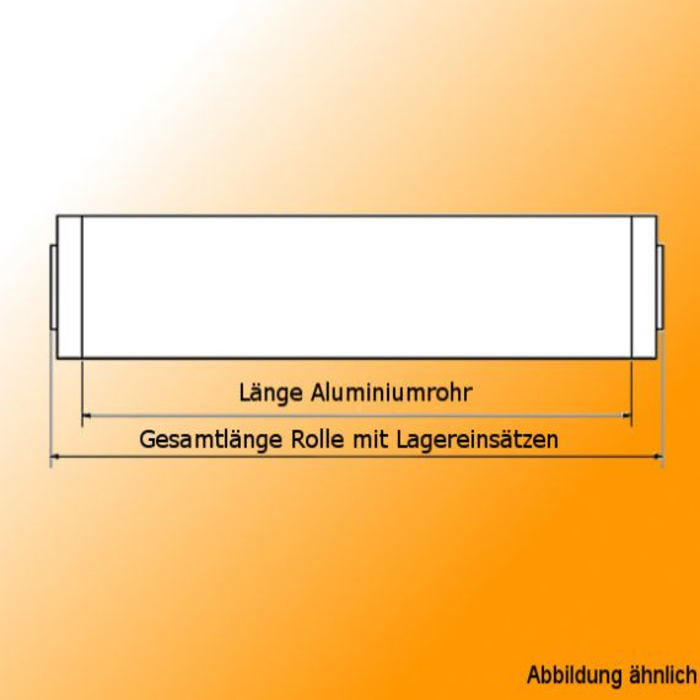

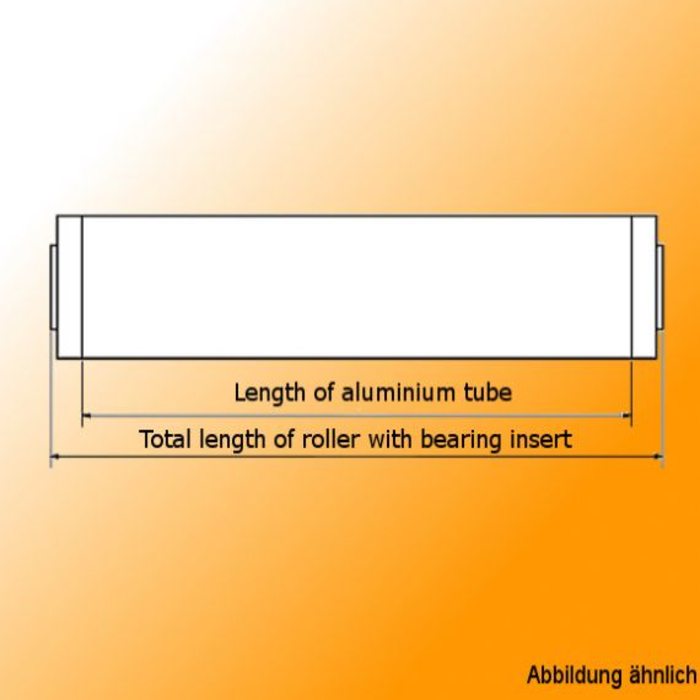

With the roller configurator, individual rollers for industrial roller conveyors can be configured very easily. In this way, each individual roll can be prepared to exactly the right size so that it can be inserted into the side parts of the roller conveyor without any problems. The carrier rollers are made of a solid metal that is particularly robust and durable. Even heavier items can easily roll on it without production coming to a standstill. When it comes to the roll diameter, users can choose between 30 x 1.5 and 40 x 1.5. The rollers can be delivered as individual parts, with a loose or secured axle, depending on what the customer wants. The maximum idler length is in an interval of 150 to 1500 mm. Axle overhang is limited up to 40mm on this product for logistic and manufacturing companies.
Product data for the conveyor roller configurator at a glance:

silver
Material: metal
Roll diameter: 30 x 1.5 / 40 x 1.5
Axle diameter: 8 / 10
Support roller length: 150 mm - 1500 mm
Axle overhang: 0 mm - 40 mm
Delivery condition: individual parts, assembled with loose or secured axle
