Shelf configurator

w/o taxes: 99,93 €
w/ taxes: 119,92 €
:
:
120mm-1980mm
:

:
:

:
:
Products description

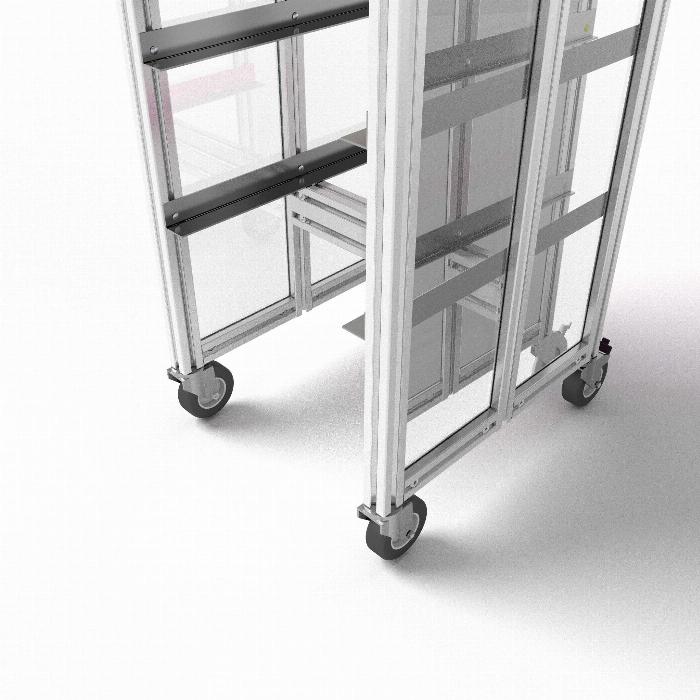

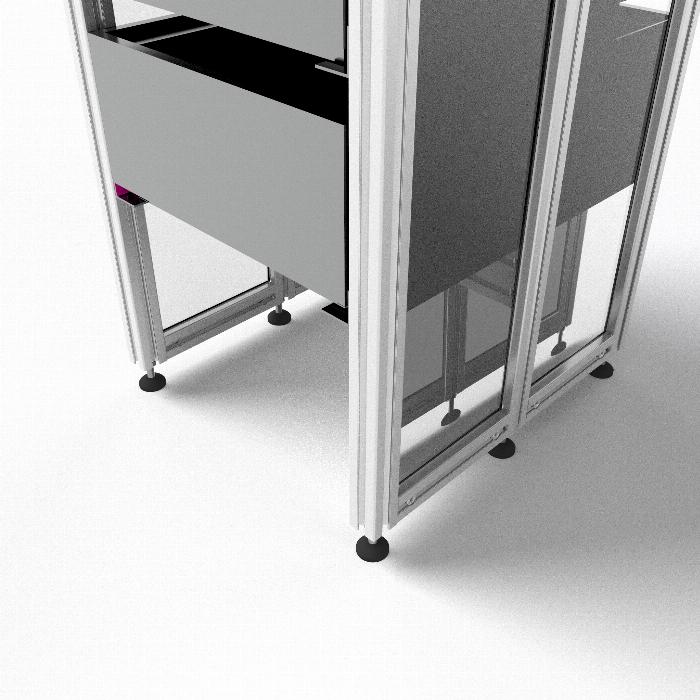

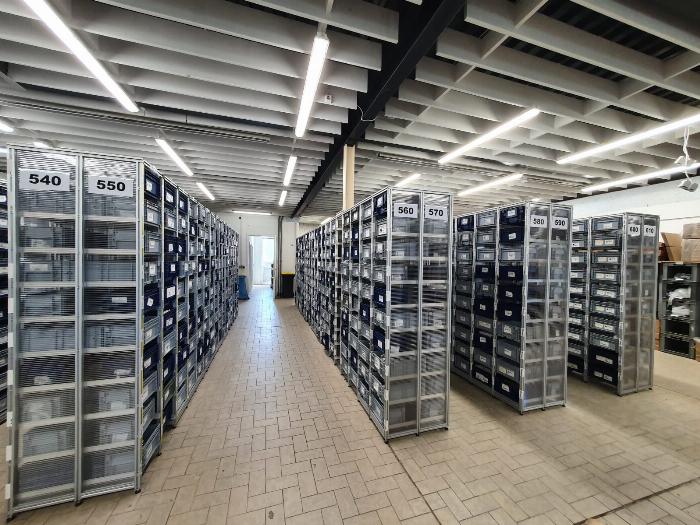

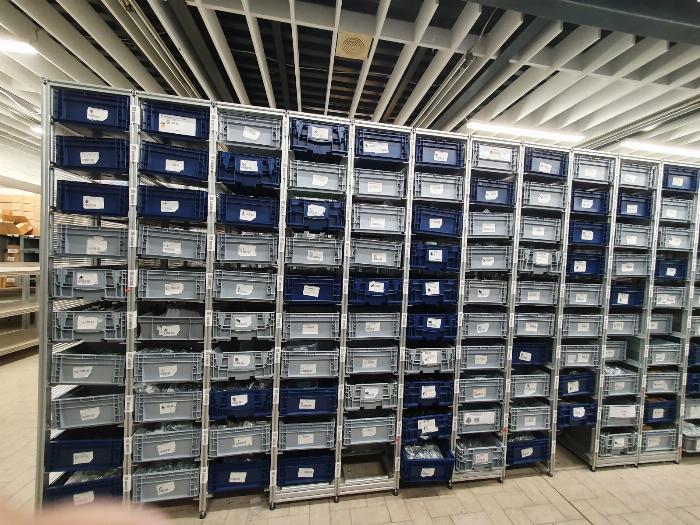

Configurable shelf system for your requirements. The boxes shown on the images are just for illustration, the kits don’t include them.



Configurable options:

Height: defines the length of the vertical profiles and the number of levels included in the kit (530mm - 3 floors; 1030mm – 5 floors; 1520mm – 7 floors; 2010mm – 10 floors)

Width: freely configurable according to your need, defines the outer width (possible box widths are between width-70mm and width-84mm)

Depth: the shelves are available in the 3 given depths

Additional modules: it is possible to attach additional shelves with the same configuration

Connector: you can order the kits with all the necessary connectors or without them if you are already equipped with the necessary B-type slot 8 connector elements

Additional floors: additional floors on top of the number defined by the height. Using this option you might find additional angle bar in the kit, because these aren't cut with the ones included in the shelf.

Floor elements: shelves are configurable without these, then the bare profiles make contact with the floor. Also you can order adjustable feet (1 piece in each vertical profile) or rollers (75mm diameter, 4 pieces per shelf, 2 with brakes and 2 without) for maximum mobility.
